Quick Answer: An 8ft shipping container is a steel storage box about 8 feet (2,438 mm) long and usually narrower and lower than a 20ft. Van Blanc’s recent stock includes a new grey 8ft with cargo doors, a side man door and barred window. Stock rotates across 4 Brantford yards; call 519-754-6844.
What This 8ft Container Page Covers
- How Big Is an 8ft Shipping Container?
- The Grey 8ft in Recent Stock
- 8ft Container Weight Ratings
- Size Codes and the CSC Area Line
- Fork Pockets and Lifting an 8ft
- 8 Foot Container Footing and Pads
- 8ft Container Security and Airflow
- Condition Checks Before It Ships
- 8ft Shipping Container Uses
- 8ft Next to the 5’10”, 9ft and 10ft
- 8 Foot Container Delivery in Ontario
- What Moves an 8ft Quote
- Frequently Asked Questions
Reading Time: 16 minutes
How Big Is an 8ft Shipping Container?
An 8ft shipping container is a short steel storage box built from ocean-box parts. It has corner castings, locking cargo doors and a plywood floor on steel cross members. The length is set at about 8 feet. Width and height are not, because no ISO series length exists at 8 feet, so each maker draws its own. Published 8ft sheets come in narrower and lower than the outside profile of a standard 20ft, which is 2,438 mm wide and 2,591 mm high.
The table below follows MC Containers’ published sheet for its 8′ ISO storage container, because it lists every measurement a buyer asks about. Container Projects and HZ Containers publish the same outside size, 2,438 x 2,200 x 2,260 mm. Units from another factory can differ by a few centimetres, so ask us for tape measurements of the actual box before you commit.
| Measurement | 8ft, metric | Imperial |
|---|---|---|
| Outside length | 2,438 mm | 8’0″ |
| Outside width | 2,200 mm | 7’2.6″ |
| Outside height | 2,260 mm | 7’5″ |
| Inside length | 2,287 mm | 7’6″ |
| Inside width | 2,112 mm | 6’11” |
| Inside height | 2,062 mm | 6’9″ |
| Cargo door opening, width x height | 2,106 x 1,949 mm | 6’11” x 6’5″ |
| Inside floor area | 4.83 sq m | about 52 sq ft |
| Inside volume (HZ Containers sheet) | about 9.8 cu m | about 346 cu ft |
| Floor | 28 mm plywood or bamboo | 1.1 in |
| Fork pockets, width x height | 320 x 115 mm | 12.6 x 4.5 in |
Set against a standard box, the published 8ft gives up 238 mm (about 9 in) of width and 331 mm (about 13 in) of height on the outside. Inside, the headroom still lets most adults stand at a bench with a vise bolted to it. The door is the tighter number. Anyone taller than about 6’4″ ducks a little walking in through the cargo doors, and tall items such as a stepladder go in tilted.
The Grey 8ft in Recent Stock
Paul and Christian LeBlanc’s September 2026 stock list at Van Blanc sums this unit up in one line: a grey 8ft with a man door and a window. It is a new box. The photos show more than the list says. The box also has a pair of cargo doors on one end, a vent high on the opposite side wall, and a plywood floor inside painted steel. Small units come and go across our Brantford yards. Treat this one as an example, and check what the four yards are holding this week before you plan around it.
Cargo Doors, Locking Bars and Lockbox

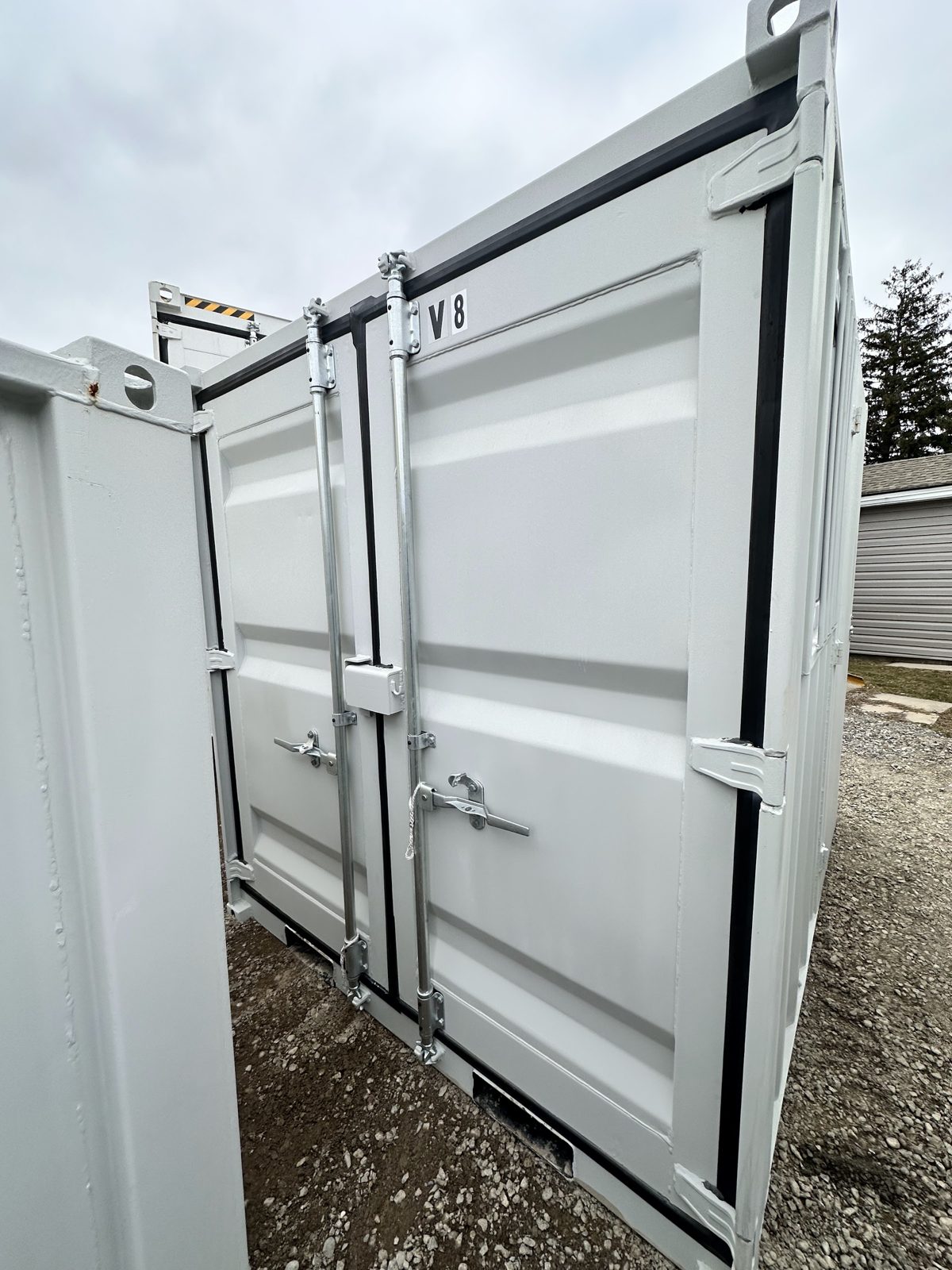

Seen from the end, the grey 8ft has two cargo doors, each with a galvanized locking bar that cams into keepers at the top and bottom of the frame. A steel lockbox sits on the centre seam at about waist height, where a padlock is shielded from bolt cutters. Black rubber seals run around both doors, and rectangular fork pockets open in the bottom rail below them. Our explainer on lever, easy-open and standard door gear shows how those bars turn and lock.
Man Door and Barred Window on the Side
One side wall carries both extra openings. A white-framed two-pane window sits near the middle of the wall behind vertical steel security bars, and a flush steel man door fills the far end. With cargo doors on the end and a man door on the side, the 8ft opens two ways. The big pair takes a mower or a shelving unit, and the single door handles the trip you make ten times a day. Cutting and framing a window opening in an office box covers the steel work behind a frame like this one.
Inside the 8ft: Plywood and Painted Steel

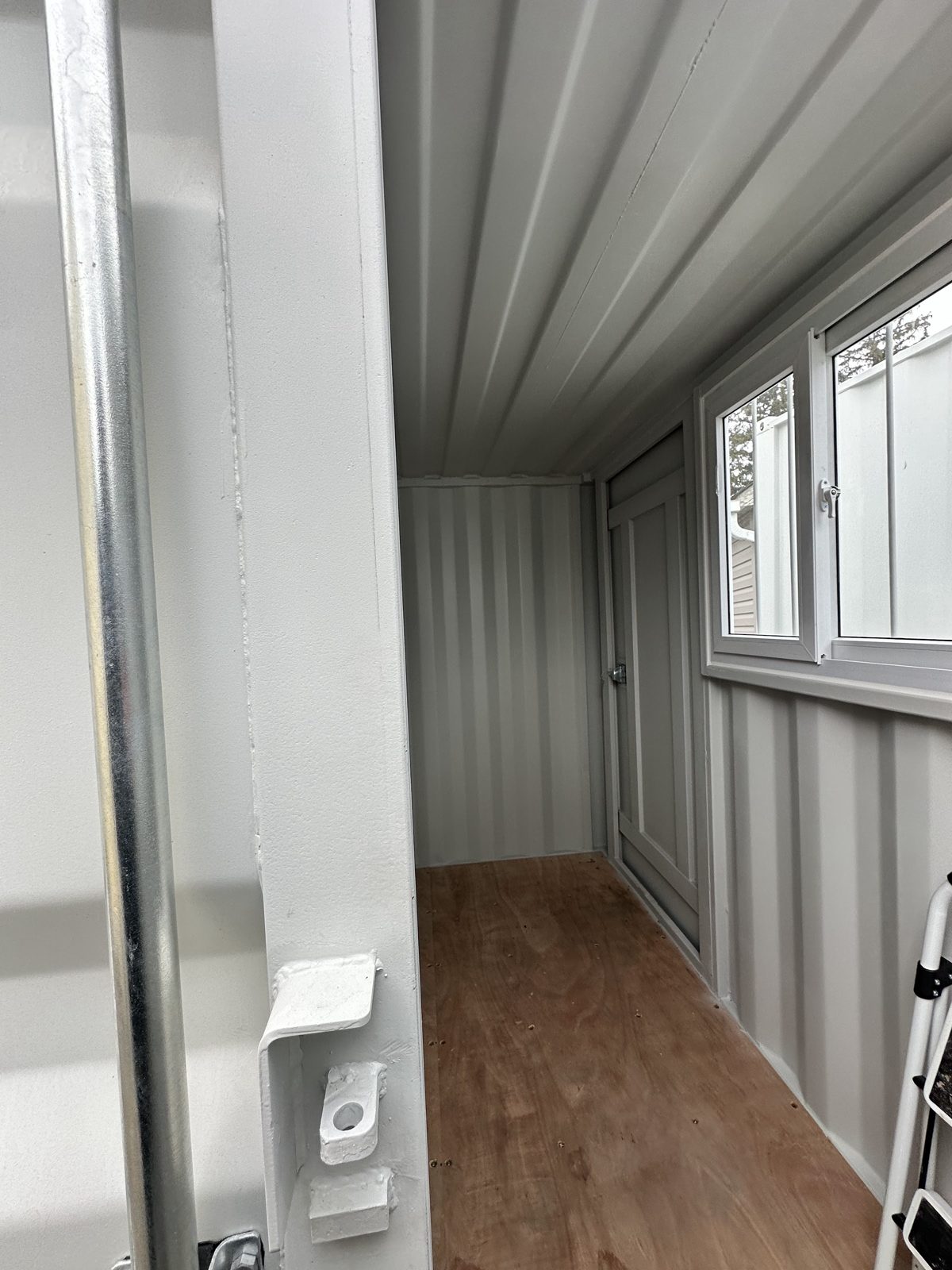

Looking in through the cargo doors, the grey 8ft is one small room. The floor is bare plywood, screwed down in neat rows to the cross members below. The corrugated walls and ceiling are painted light grey, and the window throws daylight across the floor with no wiring at all. From inside you can see the man door at the far end of the window wall. On a box this short, every part of the floor gets walked on, and our notes on replacing marine plywood in a container show what a worn floor needs.
8ft Container Weight Ratings
An 8ft container carries three weight ratings. Tare is the empty box. Payload is the cargo it is rated to hold. Max gross is the two added together, the most the loaded box should ever weigh. A 20ft carries the same three lines, and the weight lines on a full-size 20ft run much higher. Published figures for 8ft units vary more than their dimensions do, so the table sets three sheets side by side.
| Published by | Tare (empty) | Payload | Max gross |
|---|---|---|---|
| MC Containers, 8′ ISO storage container | 900 kg (1,984 lb) | 6,000 kg, printed as “Max Payload” | Not listed on its own line |
| Container Projects, 8ft general purpose | 900 kg | 5,100 kg (11,244 lb) | 6,000 kg (13,228 lb) |
| HZ Containers, 8 foot container | 600-950 kg | 1,500-5,050 kg | 6,000-10,160 kg |
Two of the three sheets agree on a 900 kg tare. That is the weight a forklift, a trailer or a HIAB crane on delivery day has to handle when the box is empty. The payload lines disagree. Container Projects prints its payload inside a 6,000 kg max gross, while MC Containers prints 6,000 kg under the payload heading. The cautious reading wins: plan on a box built to these sheets weighing no more than 6,000 kg with everything in it. HZ Containers lists some 8ft payloads as low as 1,500 kg, one more reason to read the unit’s own plate.
Stored tools, bins and a mower sit well under that line on a gravel pad. The rating starts to matter when a loaded box gets lifted, and that is why the figures on the unit itself outrank any sheet. Our line-by-line guide to a container’s data plate walks through what each figure means.
The grey 8ft in our photos shows no legible weight figures on its doors. When you call 519-754-6844 about a specific unit, ask for its plate or stencil readings and Van Blanc will read them off the steel for you.
Size Codes and the CSC Area Line
ISO 6346, the standard behind the size code painted on a container’s doors, has no slot for an 8ft. The length table published by the Bureau International des Containers starts at code 1, the 10ft at 2,991 mm, and codes 5 to 9 sit unassigned. The width table starts at 2,438 mm, the standard 8 ft, so a box 2,200 mm wide falls below every width it lists. Each length the table does code, from the 10ft up, is laid out in our tour of standard container lengths.
The CSC, the International Convention for Safe Containers of 1972, draws a size line of its own. Article II sets it by the area inside the four outer bottom corners. That area has to reach 14 sq m (150 sq ft), or 7 sq m (75 sq ft) when the box has top corner fittings. An 8ft at 2,438 x 2,200 mm covers 5.36 sq m (57.7 sq ft). Even a box a full 8 ft square covers only 5.94 sq m (64 sq ft).
The sellers’ spec sheets treat that line differently. MC Containers lists its 8′ unit as CSC approved for freight. HZ Containers says 8-foot boxes are often not certified for sea transport, with CSC certification only by exception, and are meant mostly for storage and land transport. For a box that will sit on your property, the doors, rubber door gaskets and floor you can check by hand tell you more than the plate does.
Reading the Plate on a Small Box
Where an 8ft does carry a CSC safety approval plate, the treaty spells out what it must show. Look for the country of approval and the approval reference, the month and year of manufacture, and the maker’s identification number. Then find the three load lines: maximum operating gross weight, allowable stacking weight on the corner castings and the transverse racking test load, each given in kilograms and pounds. If the door also carries stencilled ratings, compare the two gross figures.
Fork Pockets and Lifting an 8ft
Fork pockets on an 8ft are steel sleeves built into the bottom rail, sized in the spec table above. Forklift tines slide through them so the lift carries the box by its frame and never by its floor. On the grey 8ft in recent stock, the pockets open under the cargo doors.
Van Blanc delivers the 8ft you buy and sets it where the truck can reach. If you later want it shifted across your own lot, that move is yours or a hauler’s to arrange, and the pockets make it straightforward. Match the forklift’s rated capacity to the tare on the unit’s plate, and lift the box empty. Our write-up on fork length and clearance for container work covers the setup.
A short box needs less machine than a 20ft does. Any forklift or telehandler rated above the tare, with forks long enough to pass through both pockets, can carry an empty 8ft. Keep the cargo doors shut and latched during the lift so the frame stays square.
8 Foot Container Footing and Pads
An 8 foot container used for storage does not need a concrete slab. It needs ground that is firm, level and drained, with the weight taken at the four corners where the frame is strongest. A compacted gravel pad does that job, and so do timbers or concrete blocks set level under each corner. Our guide to laying a gravel base for a sea can gives depths and layers.
Level matters as much on a small box as on a big one. A light 8ft on soft ground can settle unevenly, and the cargo doors show it first when the locking bars stop meeting their keepers. Ontario frost adds a second push each spring. How frost heave lifts a container’s corners explains what happens under the box through a thaw.
Level First, Then Doors
Before the truck arrives, lay a 4 foot level across the pad in both directions. Once the 8ft is down, close each cargo door and check that its bars drop into the keepers without a shove. If one binds, a shim under the low corner fixes it, and shimming a container back to level shows where the shims go.
8ft Container Security and Airflow

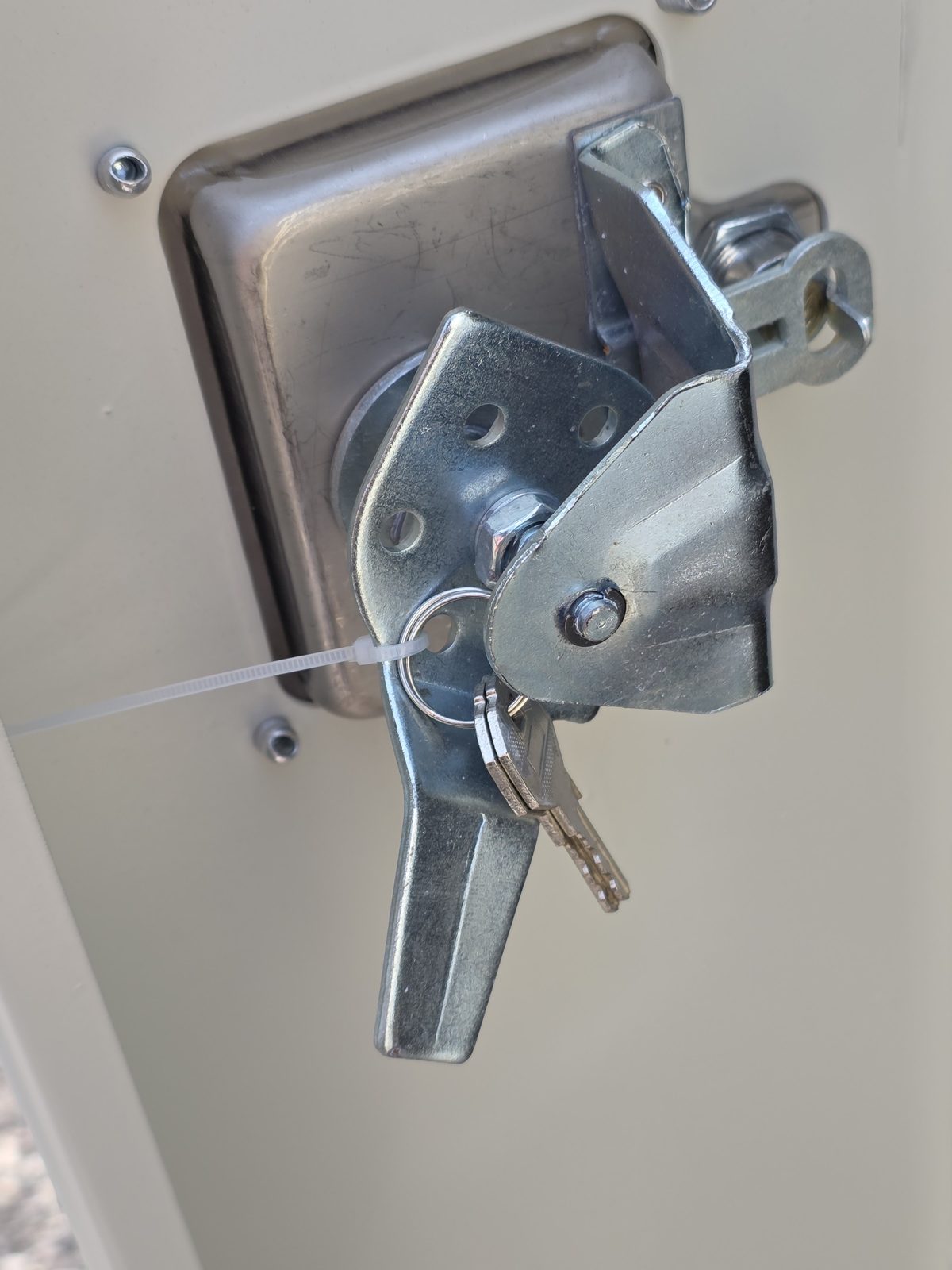

An 8ft container’s security starts at the lockbox between its cargo doors, where a padlock sits inside a steel hood that cutters cannot reach. Van Blanc’s list of yard-built container features notes that lockboxes ship as standard on most new containers and can be added to any used one. For a deeper look, read what a welded lockbox adds to cargo doors.
The side openings need their own protection. On the grey 8ft the window sits behind steel bars, which the same features page describes as stopping glass-break entry without darkening the inside. A man door locks with its own handle. The close-up below comes from a 10ft in recent stock with the same door-and-window layout.

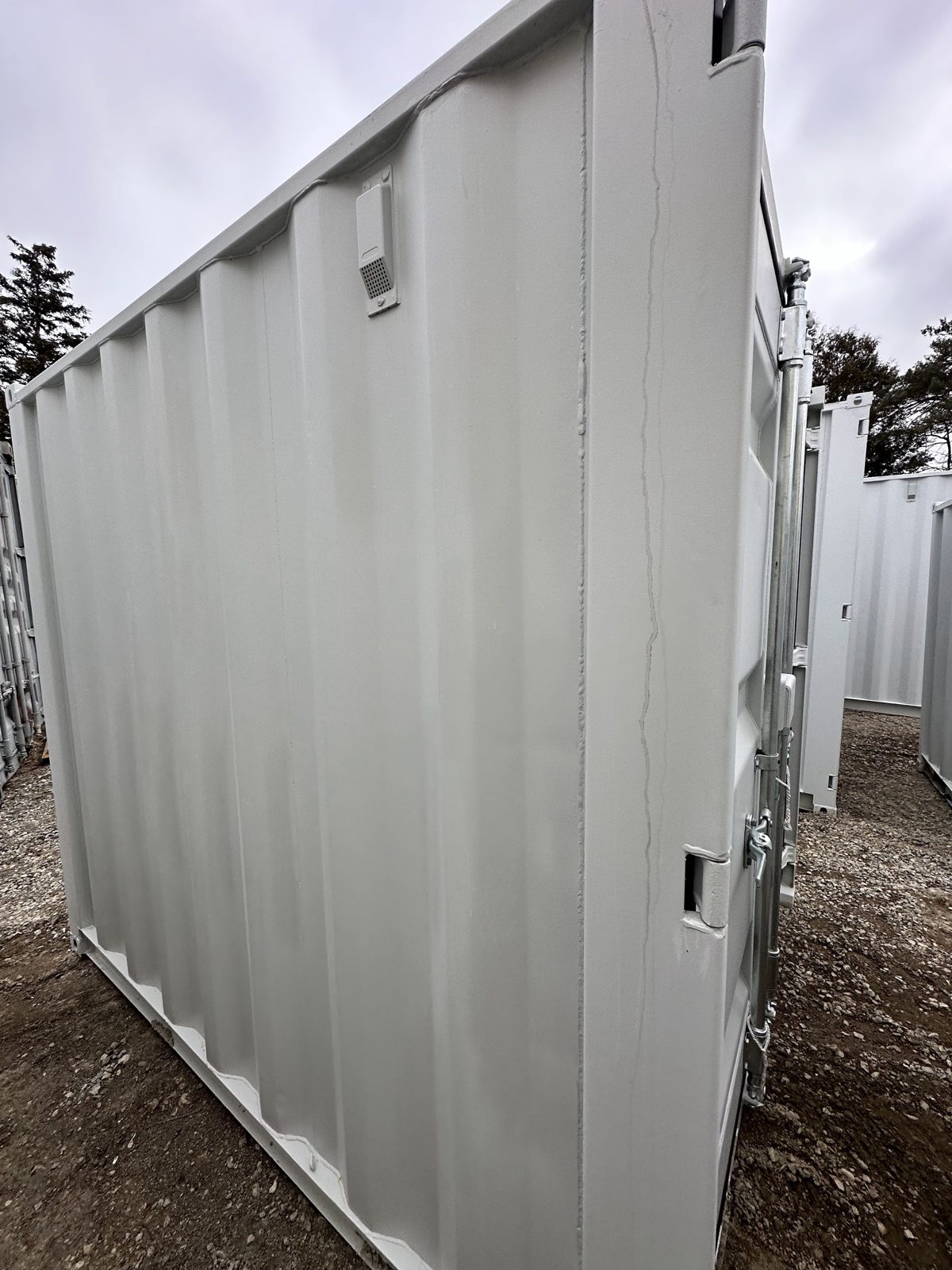

Airflow is the other half of looking after what is inside. The grey 8ft has a small perforated vent high on its plain side wall. The same Van Blanc page says most containers ship with 2 to 4 vents, and more can be added. A closed steel box sweats when the roof cools faster than the air inside, and condensation inside Ontario containers covers why and what to do about it.
Condition Checks Before It Ships
Van Blanc lets you walk the actual unit before you pay, and a box this size is quick to check properly. Work around it in this order.
- Swing both cargo doors through their full arc and close them. Each locking bar should drop into its keepers without force.
- Open and close the man door and the window, and try the keys in every lock.
- Run a hand along the rubber seals on every door. They should meet the frame all the way round with no torn corners, which is what keeps the box watertight.
- Step inside with the doors shut on a bright day. Any pinhole of light in the walls or roof shows up at once.
- Walk the whole floor, pressing down near the doors, where water and traffic do the most harm. Soft spots in a container floor tell you what to look for.
- Look at the paint along the bottom rail and around the corner castings, where rust starts on any steel box.
Small rust spots on a painted box are a paint job, and our notes on catching surface rust early on painted steel set out the steps. For a longer list to carry around the yard, use a rust and corrosion checklist for used boxes.
8ft Shipping Container Uses
An 8ft shipping container earns its spot where ground is tight and the gear inside is worth locking up. The table matches common jobs to the openings on the grey 8ft, so you can see which door does the work.
| Job | What goes inside | Which opening does the work |
|---|---|---|
| Contractor tool locker | Cordless tools, chargers, cords and fastener bins, laid out like a well-sorted jobsite crib | Man door for daily trips, cargo doors for the generator |
| Site desk with daylight | A plan table, a chair and a first-aid kit | Window for light, man door for foot traffic |
| Yard and garden gear | Push mower, trimmer, hoses, bags of soil | Cargo doors for the mower |
| Winter kit | Snowblower, salt, shovels, wire-deck shelves for smaller items | Cargo doors in, man door for a quick scoop of salt |
| Farm gate storage | Fence tools, gate hardware, spare parts | Cargo doors for rolls of wire |
| Retail backstock | Seasonal stock, signs and display pieces | Man door for staff, cargo doors on delivery day |
A Tool Locker With a Desk
A renovation crew on a tight Hamilton infill lot has room for one small box beside the driveway. Shelves go along the plain side wall for chargers and fastener bins. A folding plan table goes under the window, where daylight lands on the drawings. The generator and the mitre saw stand roll in through the cargo doors at night, and the man door covers every other trip in the day.
Homeowners use the same box on a different rhythm. Beside a garage, an 8ft takes the mower in summer and the snowblower in winter, swapped through the cargo doors as the seasons turn. Our page on setting up a sea can as a backyard shed covers the layout. Van Blanc can also build an insulated 8ft at our yards before delivery, and insulating a container for Canadian winters explains the options.
8ft Next to the 5’10”, 9ft and 10ft
The 8ft sits in the middle of the short boxes Van Blanc has carried lately. One step down is the 5’10” box with its oversized man door. One step up is the 9ft, then the 10ft, the shortest ISO length. Each size does something well, and every one of them appears with photos under all our small sizes.
| Size | Length | Openings in recent stock | What it does well |
|---|---|---|---|
| 5’10” box | 1.78 m | Oversized man door, fork pockets | Fits a narrow side yard; one wide door needs little swing room |
| 8ft | 2,438 mm (8’0″) | Cargo doors, side man door, barred window | Two ways in plus daylight, on the smallest footprint with a window in recent stock |
| 9ft | 2.74 m | Cargo doors, man door and window | The same layout with another foot of floor |
| 10ft | 2,991 mm (9’10”) | Factory-built and cut-down units, roll-up doors, man doors | A full 8 ft wide, the shortest length with an ISO size code |
Compared with the 8ft, the 10ft buys floor and adds width too, since its standard width is 2,438 mm against the 2,200 mm on the published 8ft sheets. The 10ft page lays out the factory ten and the cut-down ten in detail. Stepping down buys a smaller pad and an easier fit behind a fence. The right box is the one that suits your pad and your gear, and we can talk it through at one of our Brantford yards.
Door choices cross sizes as well. Van Blanc fits roll-up doors at our yards too. Our comparison of roll-up doors on 8ft and 10ft boxes, side by side weighs the two lengths with that door.
Ask Which 8ft Units Are In
8ft boxes come through our yards one at a time. Call and tell us the job, the size of your pad and your postal code. We will tell you on the spot whether an 8ft is on the ground and what else fits the same spot.
8 Foot Container Delivery in Ontario
An 8 foot container rides to your site on a tilt-deck truck from our 4 Brantford yards. Stocked units with no modifications arrive in 1 to 3 days across Ontario, and a box that gets new doors or vents ships once the build is finished. Every quote comes with a real lead time, not a hopeful one.
A short box is easy to place, and a little planning keeps it that way. Decide which way the cargo doors should face before the truck backs in, because turning an 8ft after it lands takes a forklift. Picking a door direction ahead of delivery day goes through the angles. Measure the run from the road as well. The truck needs room to tilt its deck and pull away, and the clear run a tilt-deck drop needs lists the numbers.
Winter delivery works when the path is cleared and the pad went in before freeze-up. Our notes on placing a box on frozen ground cover snow, ice and the pad.
What Moves an 8ft Quote
Van Blanc quotes each 8ft on its own and does not post a price, because the inputs keep shifting. These are the ones that move the number:
- New or used, plus the doors, window and vents already on the box.
- Extras added at our yards, such as a roll-up door, insulation or more vents.
- The distance from Brantford to your site, and how the truck gets in.
- The steel market and how many short boxes are coming through at the time.
Tell us the size, the job and your postal code, and we will send back an all-in number, usually the same day. For how the cost of a box changes with its length, see a length-by-length container cost comparison.
Callers tell us now and then that a Facebook seller has the same bin for a thousand dollars less. Two weeks later, some of them phone back after losing the deposit. An 8ft listed well below market, a deposit request by e-transfer and no address you can drive to are the signs to stop. How the Marketplace container scam plays out shows the rest. Van Blanc has been at it since 1995, with 4.9 stars on Google from 140+ reviews.
Frequently Asked Questions
What is the maximum weight of an 8-foot shipping container?
Container Projects lists its 8ft at 6,000 kg (13,228 lb) max gross, the box plus its cargo, with a 900 kg tare. MC Containers prints the same 6,000 kg as payload, so plan on 6,000 kg for box and load together. HZ Containers, a Czech seller, lists 8ft units from 6,000 up to 10,160 kg gross, with payloads as low as 1,500 kg. The figure that counts is on the plate or door stencil of the actual unit, and Van Blanc reads it for you before you buy.
Does an 8ft container need a concrete slab?
Not for an 8ft used as storage. A compacted, level gravel pad carries it, and so do timbers or blocks set level under the four corners. What the box does need is drainage and a level base, so the cargo doors keep meeting their keepers after a winter of freeze and thaw.
Do shipping containers come wider than 8 ft?
Yes. The ISO 6346 size code tables include width codes for boxes over 2,438 mm (8 ft), up to 2,500 mm and beyond it. The common 20ft and 40ft ocean boxes are 8 ft wide. Purpose-built 8ft units go the other way: the published sheets list them at 2,200 mm wide.
What fits in an 8 foot container?
A push mower, a snowblower, two bikes and the garden tools, with shelved bins along one wall and a walkway down the middle. Anything taller than the cargo door opening goes in tilted. On the grey 8ft in recent stock, a plan table and chair also fit under the side window.
What is the average cost of a shipping container in Canada?
No single average holds, because size, new or used condition, doors and delivery distance all move the number. Van Blanc does not post prices for 8ft units. Send the size you want, the job and your postal code, and you get an all-in quote for your address, usually the same day.
Can I see an 8ft container before I buy it?
Yes. Van Blanc sells from 4 Brantford yards, and you can walk the actual 8ft, swing its doors and step inside before you pay. Stock rotates, so call 519-754-6844 first to confirm which short boxes are on the ground that day.
Sources
- BIC (Bureau International des Containers), size and type codes from ISO 6346, Tables 1 and 2, checked September 2026.
- International Convention for Safe Containers, 1972: treaty text from the UK Foreign, Commonwealth and Development Office, Article II and Annex I, checked September 2026.
- MC Containers, 8′ ISO storage container technical details, checked September 2026.
- Container Projects, 8ft general purpose container dimensions, checked September 2026.
- HZ Containers, shipping container 8 feet specifications, checked September 2026.
Walk the 8ft Before You Buy
An 8ft is easiest to judge standing in its doorway. Swing both cargo doors, open the man door and the window, and test the floor with your own boots. Van Blanc has sold containers across Ontario since 1995, and Paul or Christian can show you the short boxes on hand.
